| Brand Name: | Sinuo |
| Model Number: | SN882B |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets/month |
ISO4892-3 Chamber Type UV Aging Chamber Environmental Test Chamber
Complied Standards & Clauses
Conforms to ISO 11507, ISO4892-3, ASTM G154, ASTM G153, ASTM4329, IEC 61215, etc.
Equipment Overview
Technical Parameters
| Model | SN882B |
| Sample size | WDH=1100*600*500(mm) Inner size sample |
| Sample placement area |
Chamber type WDH=1140*600*500(mm) |
| Shape space | About 1400*1750*750(mm)W×H ×D |
| Center distance in the lamp | 70mm |
| Distance between the test surface of the sample and the center of the lamp | 50±3 mm |
| Nozzle quantity | Top row 4 pcs |
| Spraying pressure | 70～200Kpa adjustable |
|
UV-B Lamp irradiation distribution diagram |
1.Standard machine irradiation intensity 0～0.9 is W/m2.313nm, adjustable |
|
UV-A lamp irradiation distribution diagram |
1. Standard machine irradiation intensity is 0～0.9W/m2.340nm, adjustable
|
| Lamp length | 1220mm |
| Lamp power | 40W |
| Lamp lifespan | More than 1600h |
| Number of lamps |
8 pcs lamps in the top row Ultraviolet lamps can be selected from UV-A / UV-B lamps. If there is no special instruction, the machine is equipped with UV-A lamps when leaving the factory |
| Weight | 80 kg |
| Maximum power | 3 KW |
| Maximum current | 15A |
|
Power supply conditions and power supply |
AC 220V single-phase two-wire and protective grounding; voltage fluctuation range ±10%V; frequency fluctuation range 50/60Hz; TN-S or TT power supply; protective grounding resistance less than 4Ω; users are required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must independently control the use of this equipment |

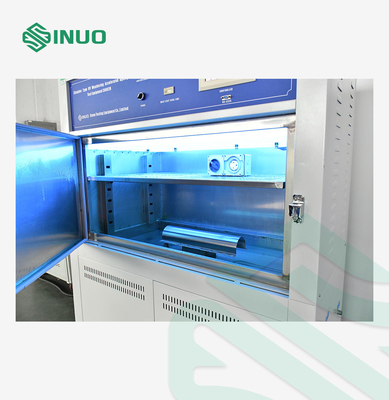

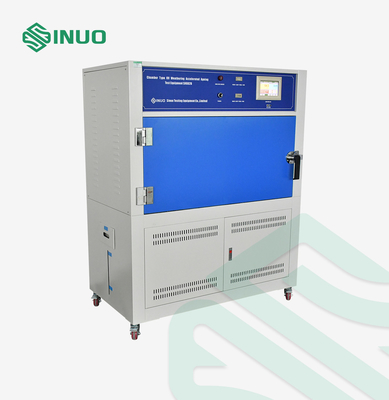

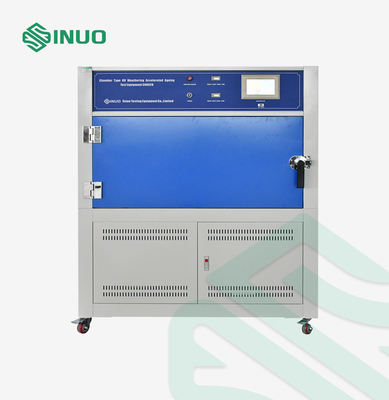

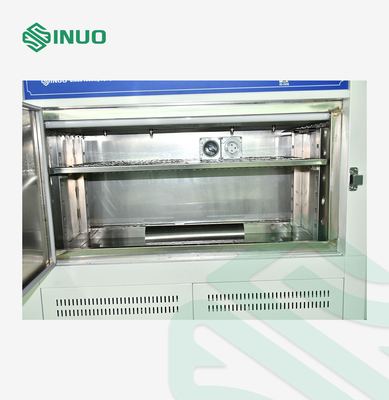

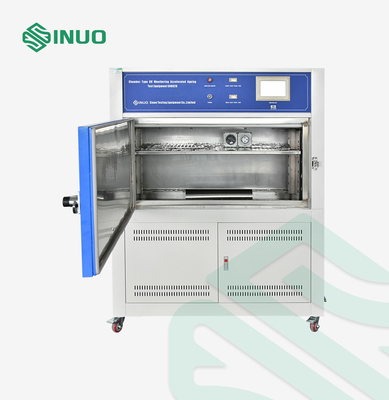

Details
