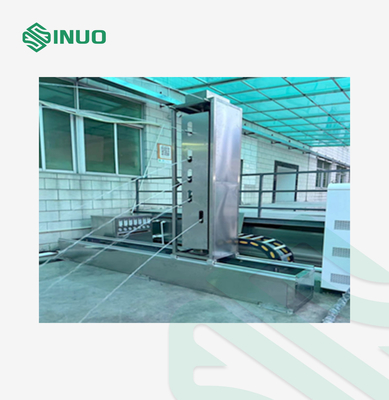

ISO20653 Outdoor ESS System IPX5 Waterproof Spray Test System
Complied Standards & Clauses
Conforms to IEC 60529:2013, ISO20653:2006, IEC60068-2-18:2000, etc.
Equipment Overview
This product is designed for testing electrical products to assess whether the enclosures and seals can maintain the equipment and components' performance in rain environments. The product adopts a scientific design, enabling it to realistically simulate various environmental conditions such as drip, rainfall, splash, and water spray. With an advanced control system and the application of variable frequency technology, the rotation angle of the rainfall specimen rack, the swing angle of the spray arm, and the spray volume frequency can all be automatically adjusted.
Technical Parameters
| IPX5 parameters | |
| Number of spray nozzles | Six IPX5 nozzles. |
| Inner diameter of spray hole |
φ6.3 mm(IPX5)
|

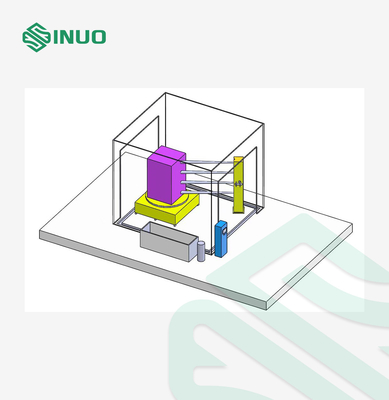

| IPX5 spray nozzle | |
| Water spray flow | 12.5±0.625(L/min)(IPX5) |
| Spray distance | The sample is 2.5 to 3 meters away from the nozzle, and the distance is controlled by the tester. |
| Pipe diameter | One piece of 1/2-inch soft pressure pipe and one piece of 1-inch soft pressure pipe. |
| Nozzle connection hose | Imported transparent hose with stainless steel wire |
| IPX5 nozzle bracket | Nozzle height and angle can be adjusted manually |
| Water spray test time | At least 3 minutes or more (adjustable) |
| Water spray pressure | 30～100kpa (adjust according to required flow rate) |
| Automatic spray system |

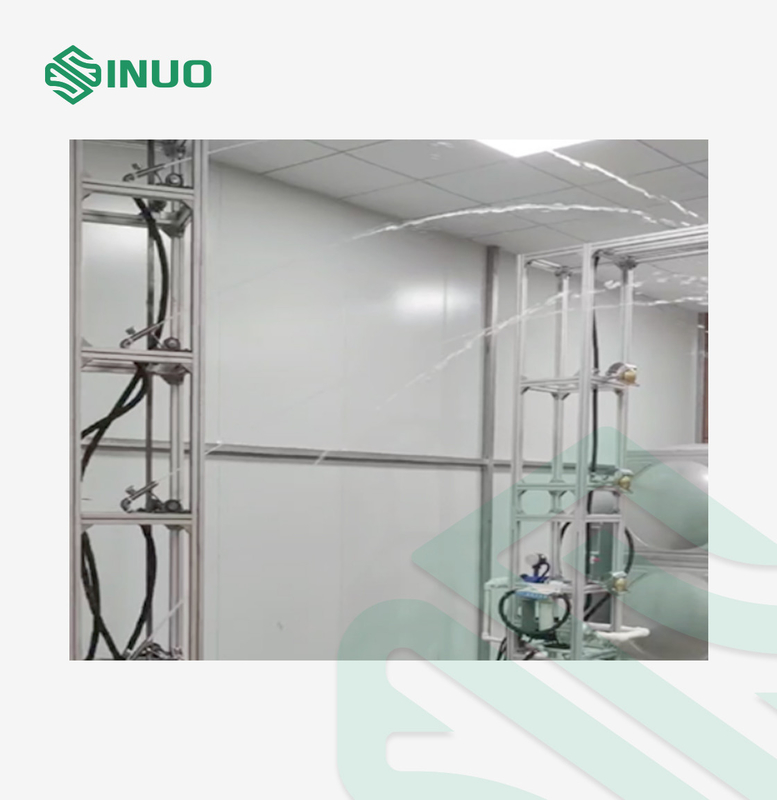

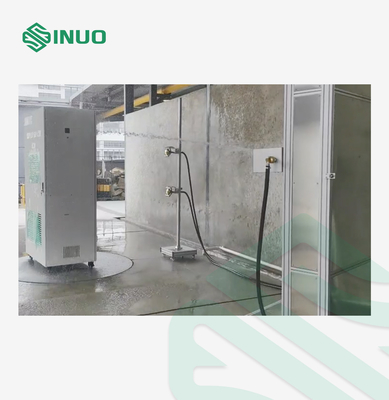

1. The spray rack is made of formed aluminum profiles, with a set of IPX5 up and down swinging nozzles, which are independently controlled.
2.The movable IPX5 spray nozzle system includes a total of 6 pcs of spray nozzles. One of the IPX5 spray nozzles is positioned at the top for testing the top of the energy storage cabinet. The remaining 5 pcs of IPX5 spray nozzles are located in the middle of the system, each capable of vertical (up and down) swinging with a swing angle of ±15°.
3.There are 6 pcs nozzles in total, each equipped with a mechanical flow meter, with individual flow meters controlling the flow for each nozzle.
(The picture for reference only)
|
| Turntable system | |
| Turntable diameter | 4000 mm |
| Turntable load | 1T |
| Turntable speed | 1～5 R/min (adjustable) |
| Water tank parameters | |
| Water tank size | 1000×3000×1000mm(W*D*H) |
| Water tank material | SUS304 stainless steel |
| Water level | Transparent hose, with stainless steel ruler to observe water level, ruler height 1.5m, ruler accuracy: 1mm |
| Water tank level control | Stainless steel float, overflow hole |
| Mobility | Four pcs swivel casters for easy movement, with brakes. |
| Water tank cover | 1 pcs |
