| Brand Name: | Sinuo |
| Model Number: | SNQC1010 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets Per Month |

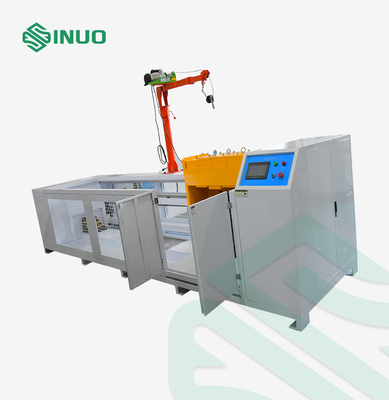

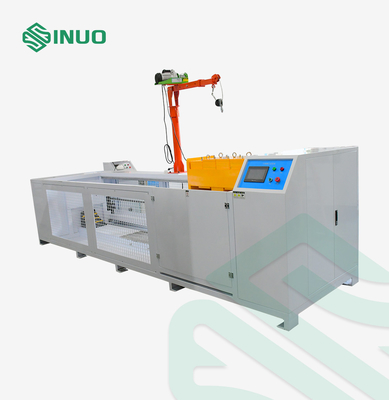

IEC 62752 EV Charging Interface Drive Over Testing Machine for Plug Vehicle Connector
Complied Standards & Clauses
Conforms to IEC 62196-1: 2022 clause 33, IEC 62752:2016 clause 9.34, etc.
Product Overview
The test equipment is used to check whether a plug or vehicle connector shall have adequate resistance to damage from being driven over by a vehicle, unless it is provided with a cable management system which prevents the accessory from being left on the ground. It is required by Conforms to IEC 62196-1: 2022 clause 33, IEC 62752:2016 clause 9.34, etc.
Technical Parameters
| Test station | Single station |
| Electrical control method | PLC intelligent integrated control, 7-inch color human-machine touch interface operation |
| Operation mode | Manual or program-controlled operation, can be selected |
| Drive over power system | Motor plus worm gear acceleration and deceleration |
| Drive over stroke | 0~2.0m |
| Load Carrying |
A. Crushing force (5000±250) N B. Crushing force (11000±550) N |
| Drive over speed | (8±2)km/h, speed adjustable |
| Drive over method | It is driven by a linear motor module to simulate the forward and backward reciprocating motion of rolling tires. This simulates the damage caused by accidental crushing of the charging nozzle head of the charging pile when the car is moving forward or reversing in reality. |

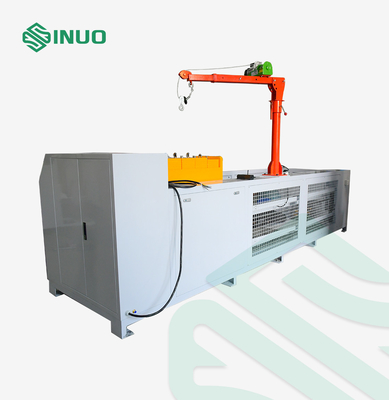

| Rolling force adjustment | Using weights, the force range is adjustable from 5000N-11000N, and the weights are loaded and unloaded by cantilever crane. |

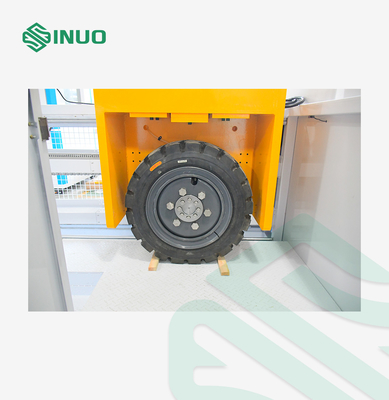

| Drive over tires |
1. Equipped with one P225/75 R15 tire and one matching wheel hub, a set of tire inflation devices (inflation interface and air pressure gauge, for 5000N test) 2. Equipped with 11000N load-bearing tire and a matching wheel hub. |
| Drive over tire pressure | (220±10) kPa |
| Load bearing base plate | Base plate with cement/concrete floor, can be equipped with fixing clamps. |
| Timing count display | Touch screen design parameters can be set within standard requirements. |

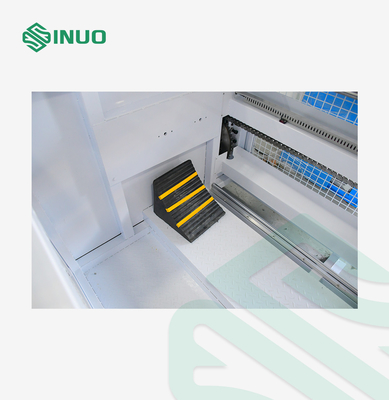

| Deceleration method | Our company has designed a braking mechanism to prevent rigid collisions. |
| Safety protection |
The whole machine is equipped with a protective fence to prevent the wheels from accidentally deflecting and prevent mechanical injuries to personnel. With leakage protection switch. With motor overload protection. |
| Usage environment |
Power supply: AC220V±10%/60Hz, power 15KW Overall dimensions: approximately W4700*D1300*H3000mm; weight: approximately 2400kg |
Details
