| Brand Name: | Sinuo |
| Model Number: | EV207HG40VT40VCSusb-2 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets Per Month |
ASTM Electric Bicycle Battery Vibration 51 mm p-p Testing Machine
Complied Standards & Clauses
Conforms to UN 38.3, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.
Product Overview
Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.
Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards
Technical Parameters
| A07S23 electromagnetic excitation generator parameters | |
| Maximum sinusoidal excitation force | 700Kg.f (6860N) peak |
| Maximum Random Exciting Force | 600Kg.f (6860N) r.ms |
| Maximum impact excitation force | 1400Kg.f(11760N) peak |
| Frequency Range | 1～4500 Hz |
| maximum displacement | 51 mm p-p |
| Maximum speed | 2m/s |
| maximum acceleration | 100G (980 m/s2) |
| Maximum load: | 300 kg |
| Vibration isolation frequency: | 2.5 Hz |
| Moving coil diameter: | Ф230 mm |
| Moving coil weight: | 7kg |
| Screw on the table | 16×M10 |
| Flux leakage | ＜10gauss |
| Allowable eccentric moment | 300N.m |
| Equipment size |
915mm×740mm×780mm (not including vertical expansion table) |
| Equipment weight | 880 kg (Excluding horizontal slide table) |
| SA-6K digital switching power amplifier | |
| Output power | 7KVA |
| Output voltage | 120V |
| Output current | 70A |
| Amplifier efficiency | ≥90% |
| On-off level | 116KHz |
| SNR | ≥65dB |
| Noise | ≤70dB |
| Amplifier size | 900mm×600mm×1130mm |
| Servo protection system | |
| Function | Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss |
| Digital vibration controller VCSusb-2 | |
| Hardware configuration | 2 simultaneous input channels, 1 output channel |
| Control function module | Sine, random, classical shock |
| Control computer | 17’’ original brand computer with LCD monitor, Windows 10 |
| Software | Chinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions. |
|
System accelerator LAB-24112 |
Frequency range: 1—12000Hz Sensitivity: 30PC/g Temperature range: -40 - 180°C |
| VT40 vertical extension table | |
| Material | Magnesium alloy, surface hardened |
| Table size | 400×400 mm |
| Fixed hole | M8 rectangular distribution, durable and wear-resistant |
| Upper limit usage frequency | Sine 2000 Hz, Random 2000 Hz |
| Weight | About 15Kg |

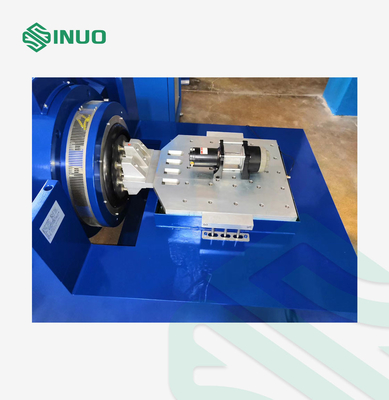

| HG40 horizontal oil film slide table | |
| Material | Magnesium alloy, surface hardened |
| Table size | 400×400 mm |
| Fixed hole | M8 rectangular distribution, durable and wear-resistant |
| Upper limit usage frequency | Sine 2000 Hz, Random 2000 Hz |
| Weight | About 18Kg (without connection head) |

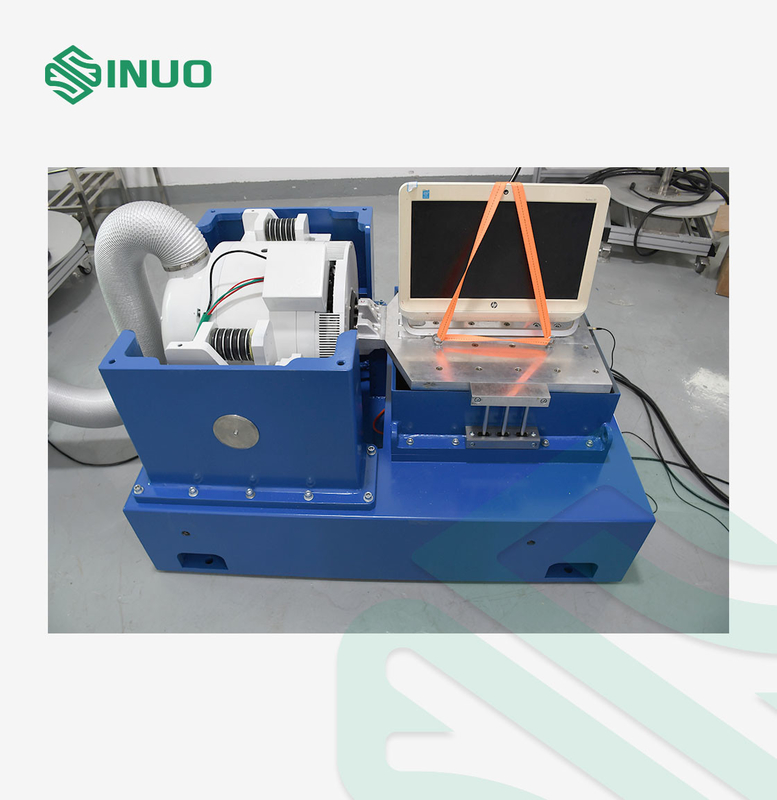

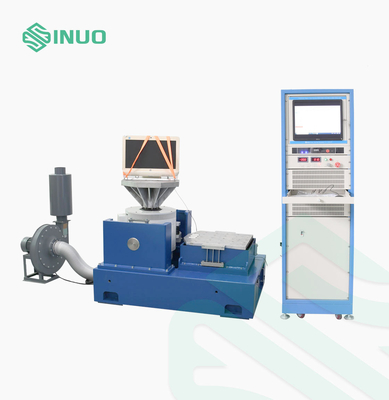

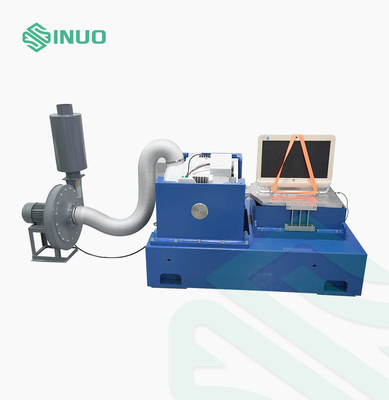

Details
