EN IEC 61851-1 Electric Vehicle Conductive Charging Pile Static Load Test Bench
Complied Standards & Clauses for Electric Vehicle Conductive Charging Pile Static Load Test Bench
This Electric Vehicle Conductive Charging Pile Static Load Test Bench complied to EN IEC 61851-1-2019, IEC 61851-1-2017 and etc.
Technical Parameters for Electric Vehicle Conductive Charging Pile Static Load Test Bench
| Operation method | PLC control, touch screen operation |
| Drive method | Servo motor |
| Test items |
1. Top static load test (0-10kN) 2. Lateral thrust test (0-1500N), double position |
| Loading direction | Horizontal 2-way, vertical 1-way (divided into horizontal loading part and vertical loading part. Each loading actuator can move freely in the plane, which is 3 degrees of freedom. 3 actuators achieve 8 degrees of freedom in total mobile loading) |
| Movable range | 3 to 8 degrees of freedom |
| Loading method | Electric |
| Range of force |
Top: 0-10KN Side: 0-1500N |
| Force speed | 0.1-50mm/s |
| Constant force time | 0-9999s, can be preset |
| Power supply | AC220V/50Hz |
| Way of moving | Electric ball screw + precision linear guide adjustment mechanism |
Equipment Overview for Electric Vehicle Conductive Charging Pile Static Load Test Bench
| Samples and Limits | Electric vehicle charging piles, low-voltage metering boxes, prefabricated substations, electrical equipment |
| Test purpose | Used for mechanical strength test of electric vehicle charging piles and similar power supply equipment shells for charging vehicles |

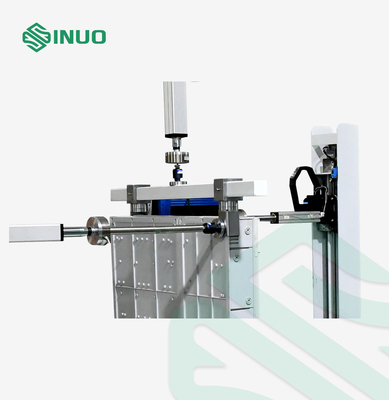

| Test Principle | Drive the electric cylinder through the servo motor to apply a certain force value to the top and side of the sample according to the standard requirements and keep it constant for a certain time to verify its mechanical strength |

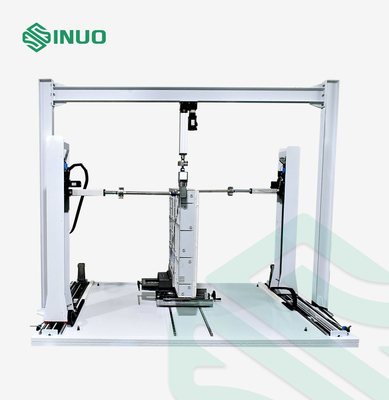

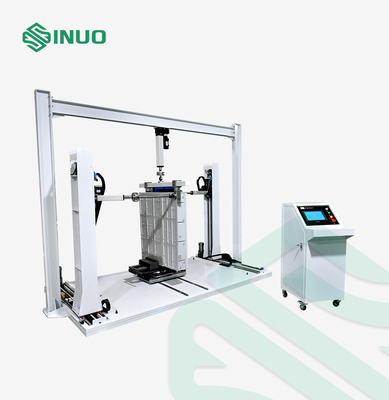

| Structure and Features | The machine adopts a frame structure, which is divided into a horizontal loading part and a vertical loading part. Each loading actuator can move freely in the plane with 3 degrees of freedom. The 3 actuators realize the mobile loading with 8 degrees of freedom in total. |
| use environment | Dimensions: about W3300*D2000*H2550mm; Weight: about 450kg |
